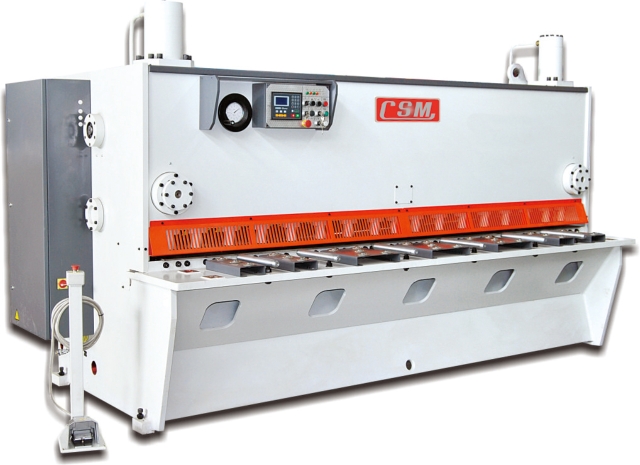

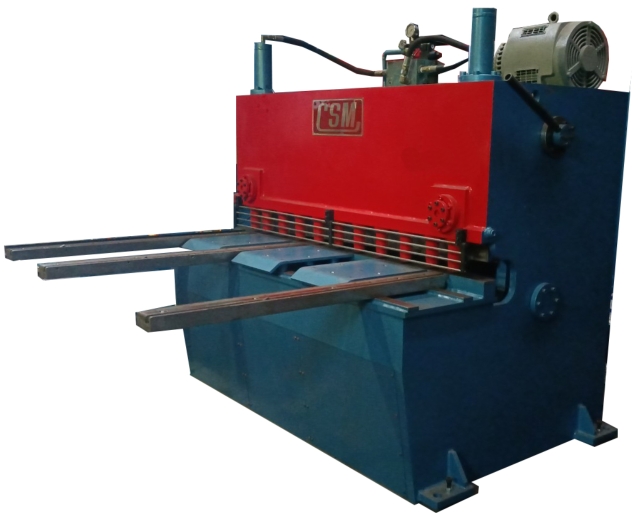

SWING ARM HYDRAULIC SHEARING MACHUNE
- Country of Origin：
- Taiwan
- Model：
- CHS series
- Material：
- Steel
- Color：
- Red
- Minimum Order：
- 1 set
- Delivery FOB Port：
- KEE
Detail Specifications
《The structure and configuration》
◆ Use high response proportional servo valve hydraulic system /
motor drive.
◆ Design of tool gap angle adjustment. Micro – ADJUSTMENT.
Material SUPPORT DEVICE EDGE SHEET FRAME
◆close TYPE PROTECTION PLATE.
《Back gauge》
◆Servo motor control. Variable frequency motor control.
◆Ball screw structure with double slide.
《 Control system》
◆ CSM Control system：
DELTA 7“ touch screen. Back gauge control system. No segment / inching / single acting / automatic 4-segment cutting control and other functions.
◆DAC 310S ( Multilingual ) ( Optional )：
Bright LCD 128 x 64 display. Visualization of actual and programmed locations ( Optional ). Programmable up to 100 steps. Panel mounting. Servo control / frequency converter / 2-speed AC control.
《 Press plate cylinder & blade adjusting screw》
Ensure shear error. Blade adjusting screw. Simple design. Simple design easy adjustment of blade turning over.
《Ball sliding platform》
Reduce operator burden.
